Blinker flasher

The blinker flasher (also known as a turn signal flasher relay or indicator relay) is an electronic module for Jawa Babetta 207, 210, 215, 225 and Korado that provides alternating flashing of the front and rear turn signals according to the original wiring scheme. It is connected to the buzzer terminal, preserving the original system concept.

For proper operation, a dual turn signal switch (for example the switch built into Domino lever assemblies) or an equivalent solution is required. The module runs on both 6 V and 12 V systems, with a maximum of 20 V, so it can be used with the original wiring as well as with a converted 12 V installation.

Features:

• Compatible with Babetta 207, 210, 215, 225 and Korado
• Alternating front and rear turn signal operation
• Works with the original wiring scheme
• Connects to the buzzer terminal

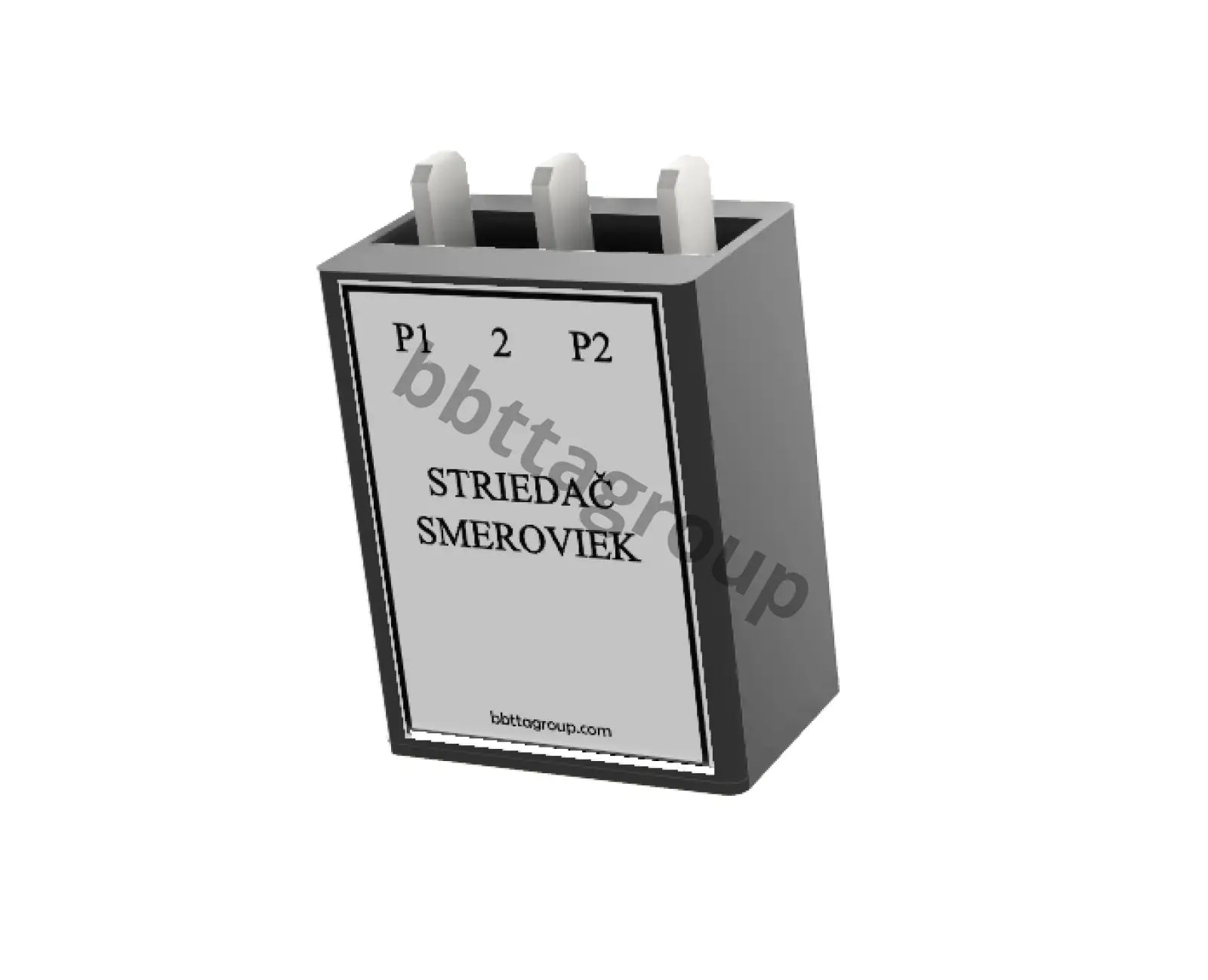

• 3 spade terminals marked P1, 2, P2
• Supports 6 V and 12 V systems
• Maximum voltage 20 V

💡 Recommendation:

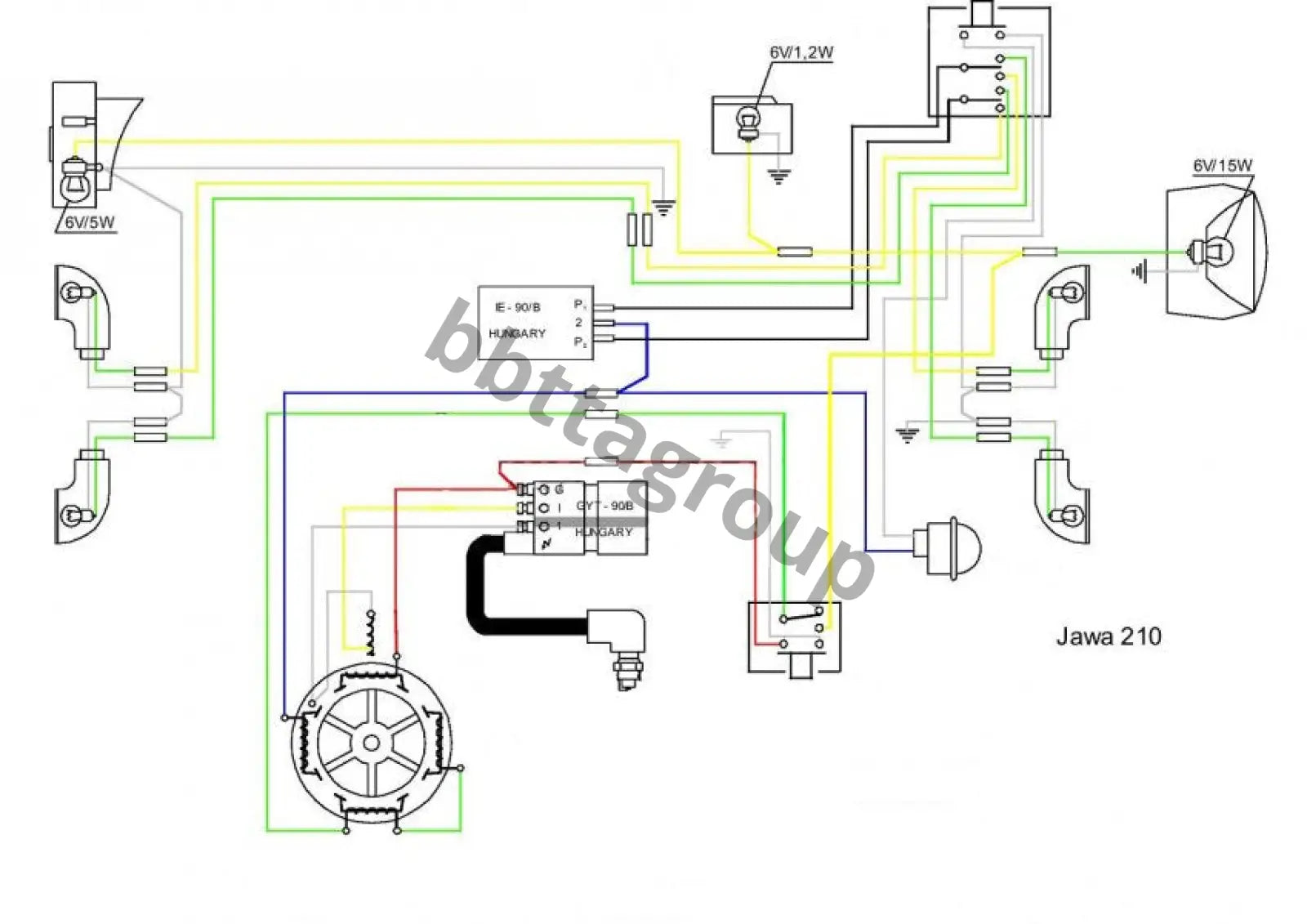

For optimal performance, 12 V / 10 W bulbs are recommended. A wiring diagram for the Jawa 210 is included in the product photos.

🔩 Note:
Proper functionality depends on the switch type and the wiring setup. The switch, bulbs and wiring are not part of the delivery. The product is intended for users with basic electrical knowledge.

❓ Frequently asked questions:

Does the flasher work on a 6 V system?
Yes, the module works on both 6 V and 12 V systems, up to a maximum of 20 V.

Which turn signal switch do I need?
A dual turn signal switch, for example the one built into Domino lever assemblies, or an equivalent solution.

Does it fit the Korado?
Yes, the module is intended for Babetta 207, 210, 215, 225 and Korado.
